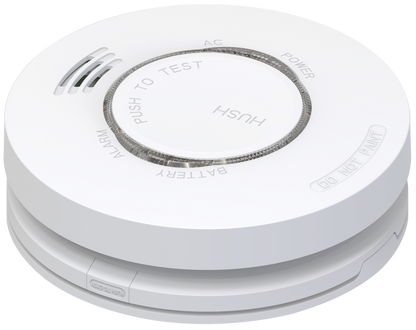

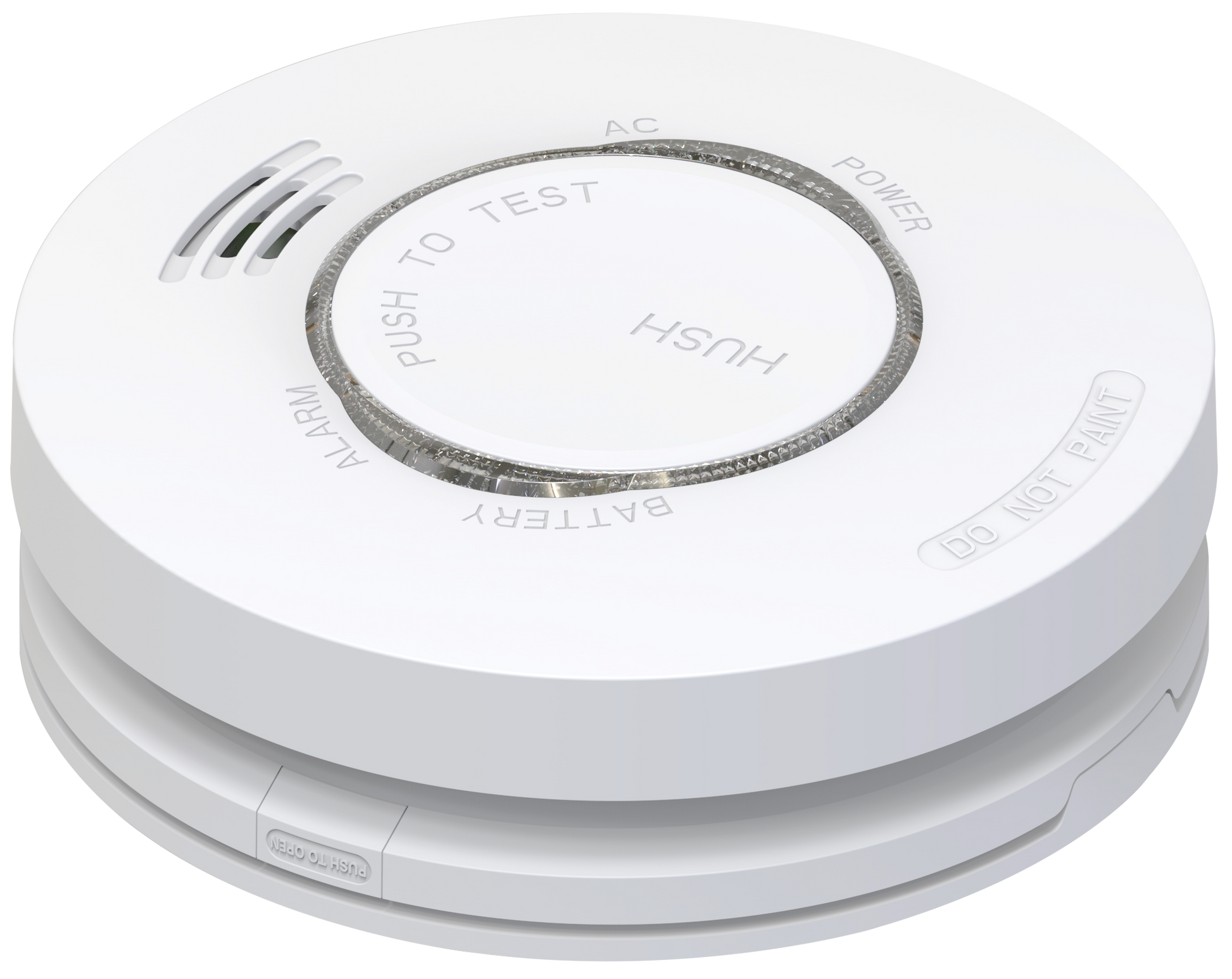

Emerald Planet Hardwired Smoke Alarm 10 Year Lithium Battery Backup (Vulcan Series)
Emerald’s 240V hardwired smoke alarms are supported by either a 1 year
9V replaceable battery or 10 year replaceable lithium battery back-up.
The alarm is fitted with a test/hush/silence button to facilitate testing of the
alarm. The silence function also allows the alarm and alarm system to be
silenced in the case of a false alarm.
Once fitted with the RF module this alarm is compatible with Emerald’s radio
frequency (RF) enabled products.
MODEL NUMBER 1yr: EP-VC-240-1
10yr: EP-VC-240-10
DIMENSIONS 1yr: 140 x 44.9mm
10yr: 140 x 44.9mm
WEIGHT 1yr: 275.2g 10yr: 281.1g
WARRANTY 10 Years
SPECIFICATIONS
POWER - BATTERY 1yr: 1 year replaceable 9V carbon zinc battery (Pairdeer 6F22)
10yr: 10 year replaceable 9V lithium maganeses dioxide battery (EVE CR9V-P)
MOUNTING OPTIONS Ceiling mount only
INTERCONNECT Optional wireless radio frequency (RF) technology
Connects with up to 40 Emerald RF enabled alarms
SENSOR Photoelectric optical chamber
SOUND PATTERN ISO 8201
ALARM VOLUME >85dB(A) @ 3m
NORMAL OPERATING &
STORAGE TEMPERATURE 0°C to 40°C
NORMAL OPERATING &
STORAGE HUMIDITY ≤93% relative humidity (non-condensing)
COMPATIBILITY RF smoke alarm is compatible with -
• Emerald’s radio frequency (RF) enabled alarms
• Emerald SafeLink Wi-Fi gateway
• Smoke Alarm Controller
